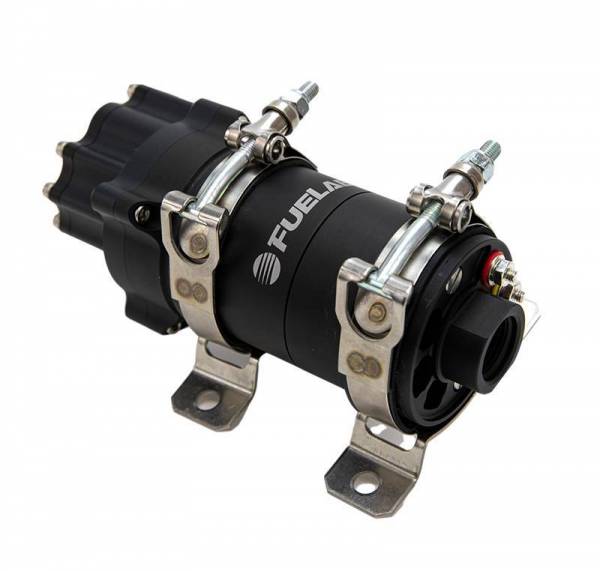

5.5 GPM Variable Speed Brushless Spur Gear Fuel Pump - 40501

5.5 GPM @ 45PSI, 100 PSI MAX - Rated up to 3600+HP - Power and efficiency at it's best!

ATTENTION: THE 40501 PRO SERIES FUEL PUMPS MUST BE USED WITH REGULATORS WITH A RETURN CAPACITY OF 10 GAL/MIN OR MORE !!! FUELAB 565XX SERIES RECOMMENDED.


Pump Features

• Compatible with gasoline, diesel, ethanol and methanol
• High precision spur gear pumping mechanism
• -12AN Inlet and -10AN outlet Ports
• Backed by a limited lifetime warranty

Motor Features

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

• Internal Speed Controller for Variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required!
• Continuous duty - motor speed can be adjusted to meet fuel demand

Construction Features

• Compact, powerful and lightweight - 3.5lbs, overall length 7.2", diameter 3.31"
• Billet Aluminum construction with Anodize per MIL-A-8625, Type II
• High quality T-Style Mounting Brackets included
• Long Life multi-fuel compatible Fluorosilicone static seals

Available in MATTE BLACK ONLY
